Mobile Operator Console — Cloudflare Access + OpenBao SSH CA

The Problem

On-call at 03:00 from a phone is a reality for every iGaming SRE. The dashboard works. But when a payment provider throws 502s mid-tournament, or a geofence trips on a cruise-ship IP block, the operator still needs a real shell — not just a status page. SSH from a laptop at a petrol station with a YubiKey hanging off a keyring is not a workflow; it is a liability.

At the same time, regulators do not care about your operational romance. SIGAP (Brazil), GLI-33, MGA Class 4, UKGC LCCP and LGPD all ask the same three questions: who authenticated, with what factor, and what did they do? Any mobile console that cannot answer those three questions in a forensic log is a compliance liability, not an asset.

The naive answer is to buy Teleport and move on. That answer is wrong at our scale (1–5 operators, ≤ 3 SSH targets) because it introduces a new critical-path dependency, a new per-user licence, and duplicates capabilities we already run. The architecture on this page is the answer we actually chose.

The App, Five Screens

Built with Expo (React Native) — same TypeScript codebase ships to iOS and Android. Screens captured on iPhone 17 (iOS 26 simulator). Each tab pulls live data from /api/v2/dash/* on new.acmetocasino.com behind Cloudflare Access; SSH actions go through the OpenBao SSH CA flow described below. Hostnames in the Terminal tab are redacted.

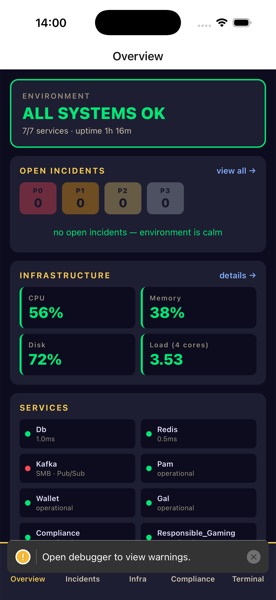

SRE overview tab — environment health, open incidents, infrastructure, services, live web digest — Overview — environment-first SRE summary, badge counts the open P0/P1.

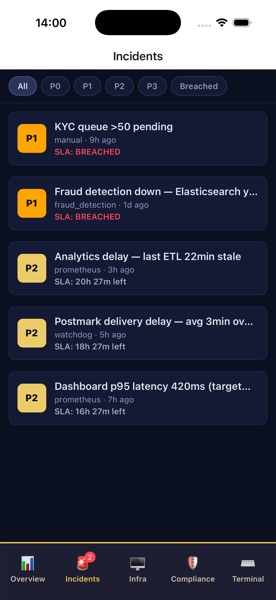

Incidents tab — severity filter chips and breached SLA badges — Incidents — live `/incidents/list` feed with severity filters and SLA countdowns.

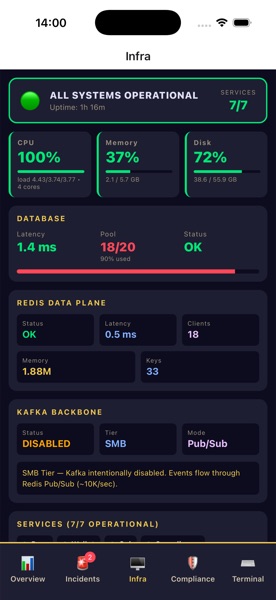

Infra tab — CPU/memory/disk rings, DB pool, Redis, Kafka, services grid — Infra — real CPU from `/proc/stat` delta, DB pool bar, Redis & Kafka health.

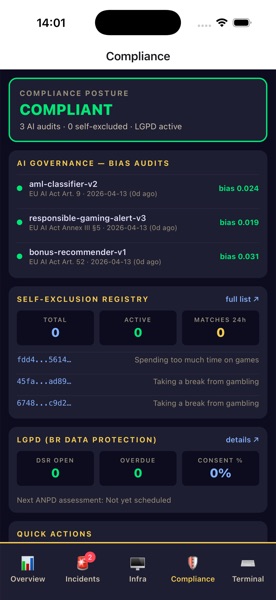

Compliance tab — AI bias audits, self-exclusion registry, LGPD — Compliance — AI bias audits, self-exclusion registry, LGPD DSR queue.

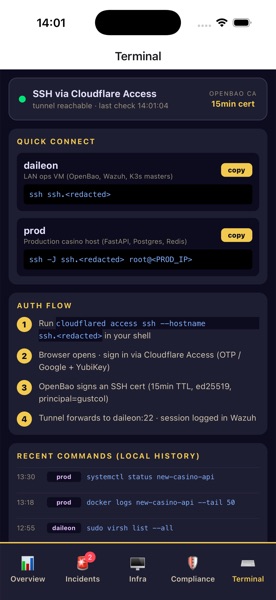

Terminal tab — Cloudflare Access SSH connection details and recent commands — Terminal — Cloudflare Access tunnel state, copy-paste SSH commands, 15-min OpenBao cert.

Decision Matrix: Cloudflare Access vs Teleport

Ten weighted criteria, scored 1 (poor) to 5 (excellent), against the five credible paths: Teleport (spec default), Cloudflare Access + OpenBao SSH CA (winner), OpenBao + VPN, Tailscale, and "mobile-responsive web only".

Criterion	Weight	Teleport	CF + OpenBao	OpenBao + VPN	Tailscale	Mobile web
Security posture (FIDO2 + mTLS + short-lived)	5	5	5	4	3	3
Operational complexity (services to keep alive)	4	2	4	4	4	5
Compliance fit (GLI-33, MGA, SIGAP)	5	5	4	4	3	4
Team-size fit (1–5 operators)	4	2	5	5	5	5
Vendor lock-in	3	2	3	5	3	5
Cost (licence + infra + effort)	4	2	5	5	4	5
Mobile UX (terminal, push, biometric)	4	5	4	3	4	3
Time-to-first-release	4	2	5	4	4	5
Fits existing chapters (20, 20b, 24h)	2	3	5	5	2	3
Lock-out / single-point-of-failure exposure	4	2	3	5	3	4
Weighted total		140	176	167	131	159

Option B wins on total score and on every "services to keep alive" and "time-to-release" criterion that matters at small team size.

Architecture

Everything in the diagram below is either (a) already running or (b) a small addition to an existing component. No new control-plane service is introduced.

phone_iphone

Tier 1

Mobile Client · iOS 16+ / Android 13+

smartphoneReact Native + Expo

XTerm.js terminal embedded in a hardened WebView.

securitySecure Enclave / StrongBox

Device-bound passkey; private keys never leave the secure element.

contactlessYubiKey 5 NFC

FIDO2 roaming authenticator via NFC tap for phishing-resistant step-up.

cloud

Tier 2

Cloudflare Edge · Zero Trust gate

shieldWAF → Cloudflare Access

Policy engine in front of every origin. Deny-by-default.

verified_userIdentity & posture checks

→ OIDC via Google Workspace SSO
→ FIDO2 hardware-key policy (YubiKey required)
→ Device posture (OS version + mTLS client cert)

apiAPI route

api.example.com → Cloudflare Worker → PROD origin

vpn_lockSSH route

ssh.example.com → Cloudflare Tunnel → LAN

dns

Tier 3

On-Prem LAN · Ops VLAN

key_verticalOpenBao

• SSH CA (15m short-lived certs)
• PKI mobile role
• HSM-sealed at rest

memoryYubiHSM 2

PKCS#11 · root signing · seal wrap

terminalsshd on ops host

TrustedUserCAKeys verifies OpenBao-signed certs. Prod bastion on Ops VLAN.

monitor_heartWazuh SIEM

auth.log + sshd session + auditd · Cloudflare Logpush (Access events).

Three-Layer Auth Flow

The spec as written listed five auth layers. Three is enough to satisfy OWASP MASVS-AUTH-1/2 and GLI-33, and each layer defends a different threat model.

fingerprint

1 · Passkey

Biometric-unlocked Passkey bound to Secure Enclave / StrongBox via expo-passkeys. Defends against stolen phone + weak screen lock. Never leaves the TEE.

key

2 · YubiKey + CF Access

Cloudflare Access enforces a FIDO2 hardware-key policy. NFC tap with YubiKey 5 NFC produces a signed assertion; Google Workspace SSO supplies identity. Result: an 8h CF_Authorization JWT.

verified_user

3 · OpenBao SSH Cert

For privileged ops (SSH, drain, payout approve) the JWT is exchanged at OpenBao for a 15-minute SSH certificate signed by the SSH CA. Each target sshd trusts only that CA — no per-key authorized_keys.

Cloudflare API Token — Exact Scopes

Create one API token, used by the mobile backend Worker and by the deploy pipeline. Five permissions, no more:

Scope	Why
Account.Access: Apps and Policies — Edit	Create / update Access applications for `api` and `ssh` hostnames.
Account.Cloudflare Tunnel — Edit	Create and rotate tunnel credentials for `cloudflared` on the ops host.
Zone.DNS — Edit	Manage CNAME records that point to the tunnel hostname.
Zone.Zone — Read	Look up zone id at deploy time.
Account.Workers Scripts — Edit	Deploy the mobile API gateway Worker.

Never grant global account-level write. The token above cannot delete zones, cannot modify billing, and cannot touch R2 or D1. If it leaks, the blast radius is confined to the mobile stack.

Implementation Highlights

Five code snippets that carry the design. All tokens, IDs and hostnames are placeholders: replace with your own before running.

OpenBao SSH CA bootstrap

# On the OpenBao host — enable SSH secrets engine, generate CA key
export VAULT_ADDR="https://openbao.internal:8200"
export VAULT_TOKEN="<OPENBAO_ROOT_TOKEN>"

bao secrets enable -path=ssh-client ssh
bao write ssh-client/config/ca generate_signing_key=true

# Role: 15-minute certs, user root@ops, key_type ed25519
bao write ssh-client/roles/mobile-admin \
    algorithm_signer=default \
    allow_user_certificates=true \
    allowed_users="root,ops" \
    default_user="ops" \
    ttl="15m"  max_ttl="15m" \
    key_type=ca  key_bits=0 \
    allowed_extensions="permit-pty,permit-agent-forwarding"

# Publish the CA public key — copy to every sshd host
bao read -field=public_key ssh-client/config/ca > /etc/ssh/ca.pub

sshd configuration on targets

# /etc/ssh/sshd_config.d/10-openbao-ca.conf
TrustedUserCAKeys /etc/ssh/ca.pub
AuthorizedPrincipalsFile /etc/ssh/auth_principals/%u
PasswordAuthentication no
PubkeyAuthentication yes

# /etc/ssh/auth_principals/ops
# (one principal per line — matches the "valid_principals" in the cert)
mobile-admin

Cloudflare Access application (Terraform)

resource "cloudflare_access_application" "ssh" {
  account_id       = "<CF_ACCOUNT_ID>"
  name             = "ops-ssh"
  domain           = "ssh.acmetocasino.com"
  type             = "ssh"
  session_duration = "8h"
}

resource "cloudflare_access_policy" "ssh_hwk" {
  account_id     = "<CF_ACCOUNT_ID>"
  application_id = cloudflare_access_application.ssh.id
  name           = "hwk-only"
  decision       = "allow"
  precedence     = 1

  include { email_domain = ["example.com"] }
  require {
    auth_method        = "hwk"   # hardware key
    device_posture     = ["posture-os-version"]
  }
}

cloudflared on the ops host

# /etc/cloudflared/config.yml
tunnel: <TUNNEL_UUID>
credentials-file: /etc/cloudflared/<TUNNEL_UUID>.json

ingress:
  - hostname: ssh.acmetocasino.com
    service: ssh://127.0.0.1:22
  - hostname: api.acmetocasino.com
    service: http://127.0.0.1:8000
  - service: http_status:404

# systemd unit drops privileges to cloudflared user; runs on the LAN host only.

Mobile client — JWT → SSH cert exchange

// src/lib/openbao.ts — sign a local ed25519 pubkey, TTL 15m
import { getItem } from "expo-secure-store";

export async function requestShortLivedCert(jwt: string, publicKey: string) {
  const res = await fetch("https://openbao.acmetocasino.com/v1/ssh-client/sign/mobile-admin", {
    method: "POST",
    headers: {
      "X-Vault-Token": jwt,           // CF Access JWT, bridged by Worker
      "Content-Type": "application/json",
    },
    body: JSON.stringify({
      public_key:   publicKey,
      valid_principals: "mobile-admin",
      ttl: "15m",
    }),
  });
  if (!res.ok) throw new Error(`sign failed: ${res.status}`);
  const { data } = await res.json();
  return data.signed_key as string;   // OpenSSH certificate, 15m TTL
}

Compliance Mapping

What each regulator asks for, and which piece of the stack answers it.

Regime	Control	Answered by
SIGAP (Brazil)	Privileged access authentication & session record	CF Access FIDO2 log + Wazuh `sshd` session log
GLI-33	Named operator, hardware-backed factor, audit trail	Google SSO identity + YubiKey + Wazuh
LGPD	Who accessed PII, when, purpose	CF Logpush to Wazuh + application-level audit on `/api/v2/*`
MGA Class 4	Key custody & short-lived credentials	OpenBao SSH CA (15m TTL) sealed by YubiHSM 2
UKGC LCCP	Separation of duties, least privilege	CF Access policies per application + OpenBao roles
OWASP MASVS	AUTH-1/2, NETWORK-1/2, STORAGE-1	Passkey + mTLS + cert pinning + MMKV encrypted store

Cost Comparison

Back-of-envelope annualised cost for a 5-operator team. "Verify with vendor" applies to every third-party number below — these are the right order of magnitude, not current quotes.

Line item	CF + OpenBao	Teleport (Team tier)
Control-plane licences	$0 — CF Zero Trust free ≤ 50 seats	Per-user per month (verify with vendor)
Self-hosted services	OpenBao already running	Auth + Proxy + agents + Device Trust
YubiKey 5 NFC × 5	~$275 one-off	~$275 one-off
Mobile app (Expo EAS)	$99/mo team	$99/mo team
Engineering time (setup)	10–14 person-days	15–20 person-days + ongoing upgrades
Migration cost if abandoned	Low — OpenBao and CF are open standards	High — RBAC + recordings live in Teleport

Stack Summary

keyHardware

YubiKey 5 NFC · YubiHSM 2 · iPhone Secure Enclave / Android StrongBox

lockIdentity / secrets

Cloudflare Access · Google Workspace SSO · OpenBao (SSH CA + PKI) · cloudflared

phone_iphoneMobile app

React Native · Expo SDK 51 · TypeScript · Zustand · TanStack Query · XTerm.js · MMKV

shieldAudit / SIEM

Wazuh SIEM · Cloudflare Logpush · sshd session log · auditd

cloudEdge

Cloudflare Workers (mobile API) · Cloudflare Tunnel · Cloudflare WAF

notifications_activePush & alerts

Expo Push → FCM + APNs · critical-alert bypass for incident channels

Read the Full Chapter

This page is a condensed architecture brief. The full decision, gap analysis, phased rollout, risk register and runbooks live in the book.
